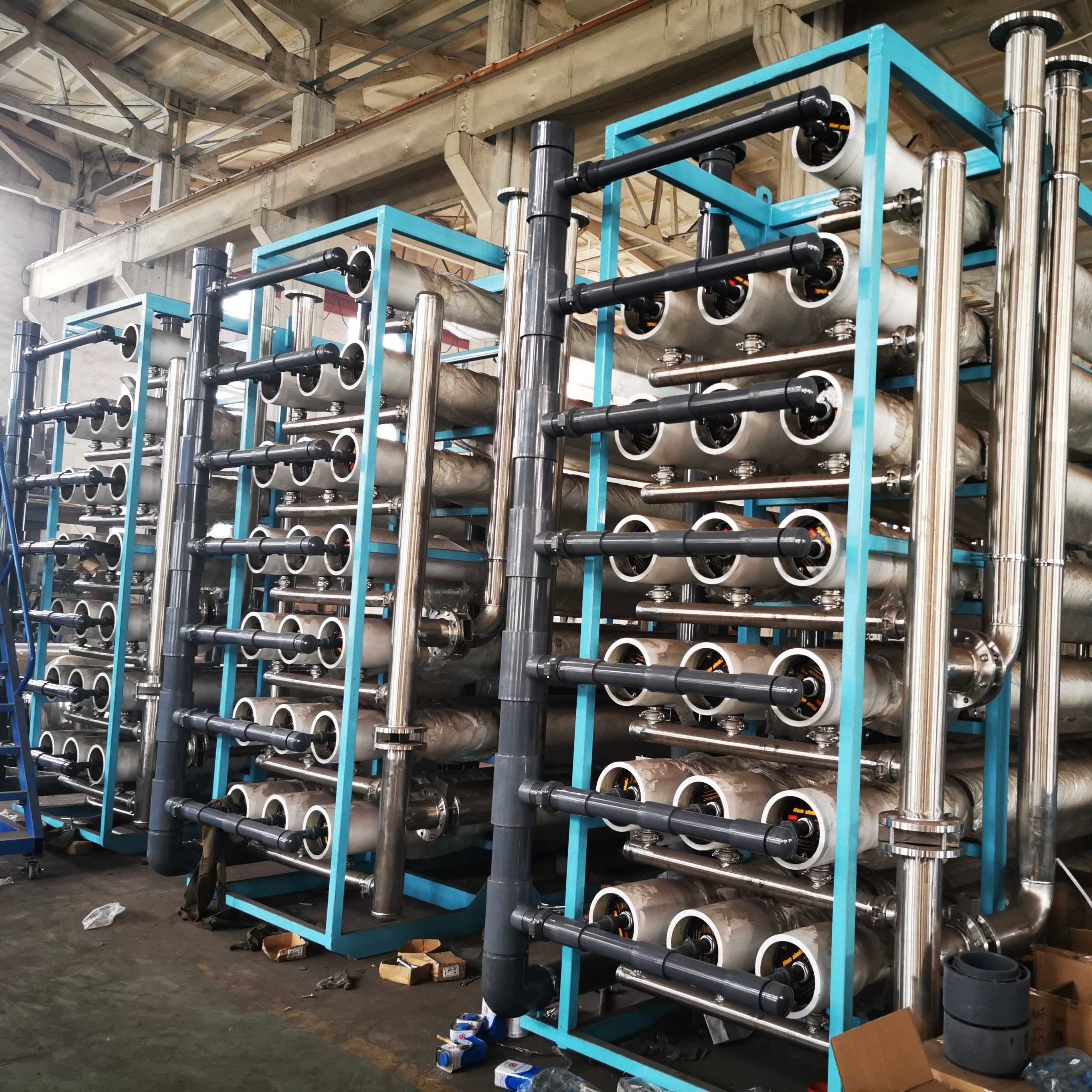

Tubular Ultrafiltration System with MEMBRANE BIOREACTOR (MBR) Technology for Advanced Particulate & Biological Water Filtration
This advanced Tubular Ultrafiltration System integrates high-performance ultrafiltration membranes with Membrane Bioreactor (MBR) technology to deliver superior particulate and biological filtration for industrial and municipal water treatment applications. The system utilizes a precision porous membrane structure to physically separate impurities based on molecular size. Under pressure, water molecules, inorganic ions, and low-weight organic compounds pass through the microporous membrane, while bacteria, colloids, suspended solids, and high-molecular-weight organic contaminants are effectively retained—achieving highly efficient mechanical sieving and purification.
Key Applications:
Ultrafiltration membranes, especially when configured within an MBR system, are extensively applied in modern water treatment processes. They serve critical roles in:
Pretreatment for reverse osmosis (RO) systems
Production of potable drinking water
Wastewater treatment and water reuse/recycling
Sterilization and clarification in beverage and alcohol production
Removal of pyrogens and impurities in pharmaceutical manufacturing
Concentration processes in food and pharmaceutical industries
Customization Offer:
We provide fully customizable systems tailored to your specific requirements. Please share your technical parameters, flow diagrams, or other project needs. We guarantee a quick response within 12 hours via email or online chat.
Parameters
| Type | Inlet Pipe | Outlet Pipe | Cleaning Pipe | Overflow pipe | A | C | D | E | F | G | K | L | S | U |
| ZL350X600 | DN100 | DN150 | DN15 | DN80 | 1195 | 600 | 880 | 1100 | 620 | 600 | 540 | 760 | 735 | 550 |
| ZL610X610 | DN150 | DN200 | DN15 | DN80 | 1290 | 610 | 1385 | 1395 | 750 | 1000 | 630 | 885 | 748 | 945 |
| ZL610X1220 | DN200 | DN250 | DN20 | DN150 | 1940 | 1220 | 1385 | 1595 | 950 | 1000 | 830 | 1085 | 1360 | 945 |
| ZL610X1830 | DN250 | DN300 | DN25 | DN150 | 2425 | 1830 | 1385 | 1745 | 1100 | 1000 | 980 | 1235 | 2025 | 945 |
| ZL800X1830 | DN300 | DN350 | DN25 | DN150 | 2425 | 1830 | 1450 | 1935 | 1200 | 1190 | 980 | 1330 | 2025 | 1255 |
Features
1. It has high efficiency separation, purification and high concentration.
2. High mechanical strength and resistance to broken wires.
3. Stable performance, no influence on the processing of materials, sensitive substances, juices, medicines, etc. are always separated, purified and classified at room temperature.
4. The system material is made of high-grade sanitary 304 stainless steel, and the pipeline is fully enclosed, and the cleanliness and hygiene can meet the requirements of GMP and FDA production specifications.
5. Tenacious long life, chemical corrosion resistance, anti-aging performance, etc., can be repeatedly cleaned and used, and has strong decontamination power.
Packing and Delivery
1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
