High-Quality Screw Conveyor for Cement: Carbon Steel Trough with 304 Stainless Steel Spiral
The LSW series screw conveyor is designed for efficient bulk material handling, utilizing a rotating helical blade to move powders, granules, and small lumps of materials. It supports horizontal and inclined layouts (at angles up to 20°), making it a versatile solution for continuous conveying in cement and related industries.
Key Advantages:
Robust and Compact Design: Simple structure with a small cross-sectional area, excellent sealing performance, and highly reliable operation.
Cost-Effective and Flexible: Low manufacturing cost, easy loading and unloading, and reversible operation allowing bidirectional material transport.
Multi-Functional Process Integration: Beyond conveying, the system can simultaneously mix, blend, heat, or cool materials during transit.
Adjustable Material Flow: Flow rate can be easily controlled at loading and discharge points, offering operational flexibility.
Parameter
| Type | diameter of screw(mm) | Helix istance(mm) | speed(r/min) | conveying capacity(m3/h) | length of screw(mm) |
| LS-200 | 200 | 200 | 100 | 6.2-12.4 | customized |
| LS-250 | 250 | 250 | 90 | 10.9-21.8 | customized |
| LS-300 | 300 | 300 | 80 | 13.4-38.8 | customized |
| LS-400 | 400 | 355 | 71 | 37.7-62.5 | customized |
| LS-500 | 500 | 400 | 63 | 49.6-97.7 | customized |

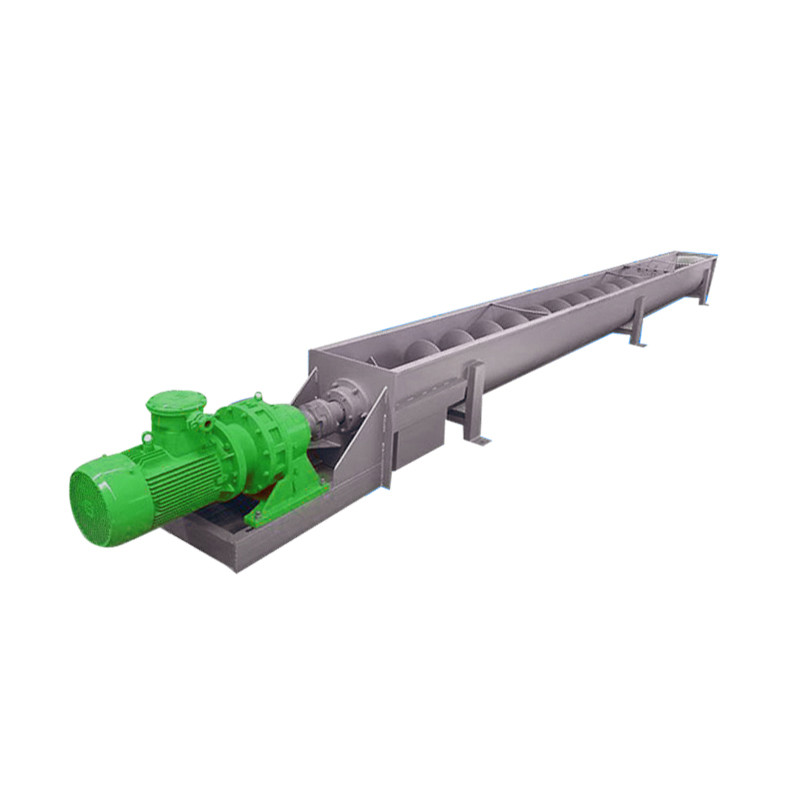

Real Picture
Company Profile
Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.
