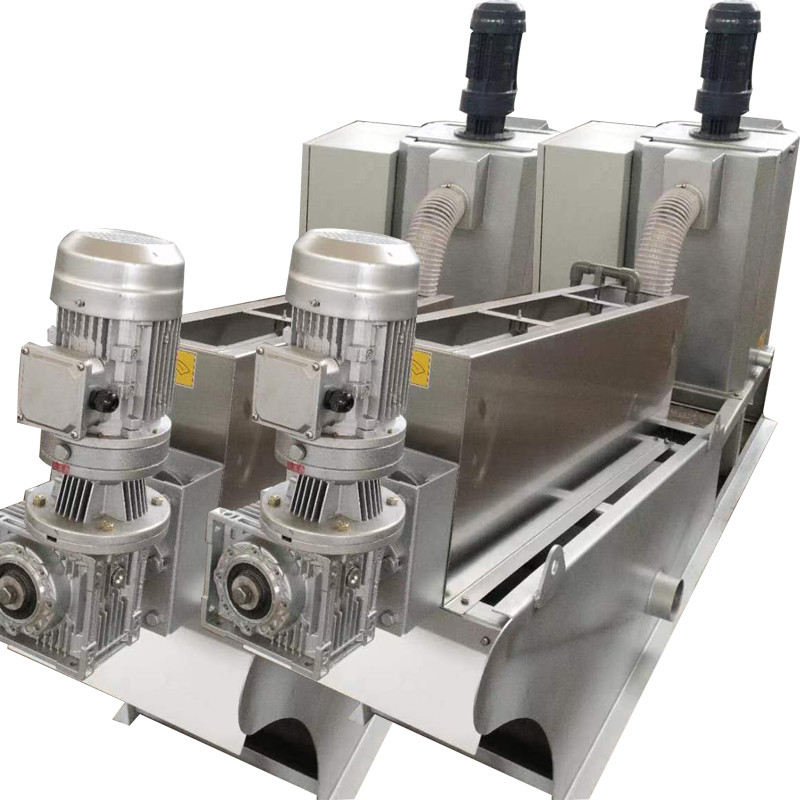

Wholesale customization Self-Cleaning Volute Sludge Dewatering Machine for Municipal Wastewater Solid Liquid Separator
Sprial Type Sludge Dewatering Equipment is our main product. It is a new kind of solid-liquid separation technology by adopting multi-disk structure. Low rotation speed, energy-saving, non-clogging design, easy to operate, all these advantages make this dewatering press more and more popular around the world. And it can work 24h automatically, it saves labor cost. Compact and smart design saves the construction cost. Easy to maintain saves your maintenance cost.
Advantage
1,Low operating costs
40% of the belt filter press and 20% of the decanter of the centrifuge；
2,Energy saving
5% of centrifugal decanter
3,water conservation
0.1% of belt Press
4,Polymer savings
60% average polymer savings
5,Compact design
Save space and 60% construction costs
6,Non clogging design
Easily handle oily sludge
Parameters
| Specification and dimension Model | DL-101 | DL-102 | DL-201 | DL-202 | DL-301 | DL-302 | DL-303 | |
|
Handling capacity (m3／h) |
Ind concentration S．S．0.2～0.5％) |
0.6~1.5 | 1.2~3.0 | 1.8~4.5 | 3.6~9.0 | 6.0~15 | 12~30 | 18~45 |
|
Ind concentration (S．S．0.5～2.0％) |
0.25~0.6 | 0.5~1.2 | 0.75~1.8 | 1.5~3.6 | 2.5~6.0 | 5.0~12 | 7.5~18 | |
|
Ind concentration (S．S．2.0～5.0％) |
0.1~0.25 | 0.2~0.5 | 0.3~0.75 | 0.6~1.5 | 1.0~2.5 | 2.0~5.0 | 3.0~7.5 | |
|
Exdry amount (kg／h) |
Ind concentration (S．S．0.2～0.5％) |
0~3.0 | 2.4~6.0 | 3.6~9.0 | 7.2~18 | 12~30 | 24~60 | 36~90 |
|
Ind concentration (S．S．0.5～2.0％) |
0~5.0 | 5.0~10 | 9.0~15 | 18~30 | 30~50 | 50~100 | 90~150 | |
|
Ind concentration (S．S．2.0～5.0％) |
0~5.0 | 5.0~10 | 9.0~15 | 18~30 | 30~50 | 50~100 | 90~150 | |
| Water content of mud cake (％) | 75~85 | 75~85 | 75~85 | 75~85 | 75~85 | 75~85 | 75~85 | |
| Spirical Didiameter (mm)x Quantity (root) | 100x1 | 100x2 | 200x1 | 200x2 | 300x1 | 300x2 | 300x3 | |
| Power power(KW) | 0.2 | 0.3 | 0.6 | 0.8 | 0.8 | 1.2 | 1.95 | |
|
contour size of the unit(s) (ww) |
L | 1816 | 1816 | 2500 | 2500 | 3255 | 3455 | 3605 |
| W | 756 | 910 | 850 | 935 | 985 | 1295 | 1690 | |
| H | 1040 | 1040 | 1270 | 1270 | 1600 | 1600 | 1600 | |
| Reference Weight(kg) | 190 | 275 | 360 | 470 | 820 | 1350 | 1820 | |
Company Profile
Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.
FAQs
Q: What certificates do you have?
A: CE/ISO/SGS
Q: Do you offer after-sales service?
A: Yes. Engineers available.
Q: How long is your warranty?
A: 2 years after the arrival of the goods. During this period, as long as it is not a man-made damage, we send the damaged parts free of charge.
Q: What about your delivery Time?
A: Normally within 45 days against down payment.
Q: What about the package of your export product?
A: We use anticorrosion wooden case with foam inside.
Q: What kind of payment do you accept?
A: T/T, L/C, PAYPAL, Cash, D/P, D/A, WESTERN UNIION, MONEYGRAM
