| Place of Origin: | Jiangsu China |
| Brand Name: | longdai |
| Certification: | ISO9001 |
| Model Number: | LD-134 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Export polywood |
| Delivery Time: | 25 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 2500 sets per Years |
| Name: | Sludge Dewatering Screw Press | Material: | SS304 |
|---|---|---|---|
| Size: | Custom Made | Capacity: | 1-500m3/h |
| Feature: | Pressure | Application: | Factory |
| Other Name: | Volute Screw Sludge Dehydrator | Advantage: | Low Cost |
| Key Words: | Stacked Spiral Sludge Treatment | Type: | Screw |
| Highlight: | SS304 screw press slduge dewatering machine,sludge treatment machine 500m3/h,SS304 sludge treatment machine |
||

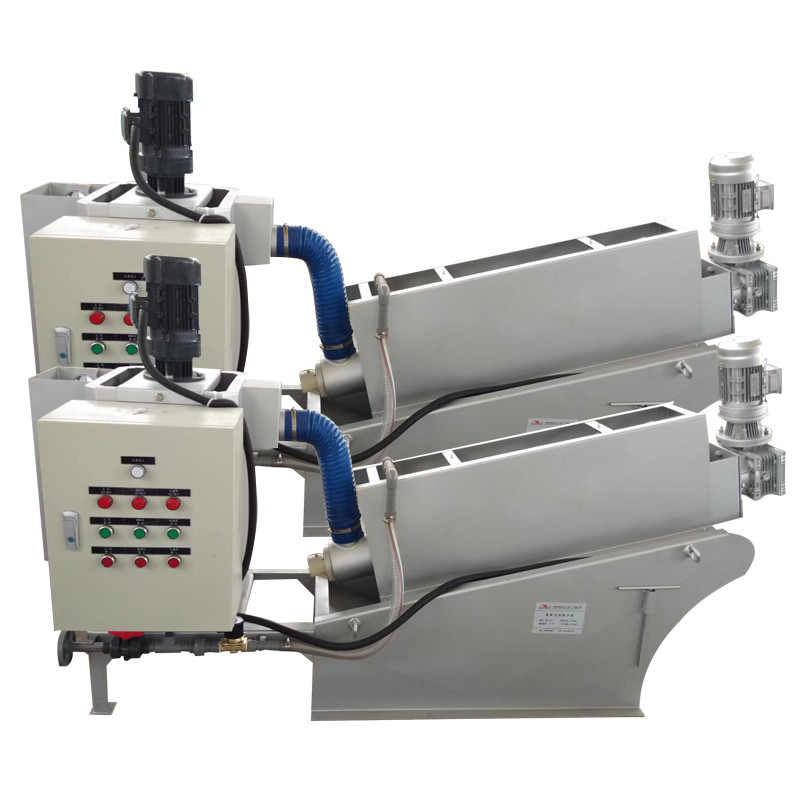

This equipment is mainly used for sludge dewatering. After dehydration, the water content of the sludge can be reduced to 75% -85%. The stacked screw type sludge dewatering machine integrates a fully automatic control cabinet, flocculation conditioning tank, sludge concentration and dewatering water body, and a liquid collection tank. Efficient flocculation can be achieved under fully automatic operating conditions, continuously completing sludge concentration and pressure filtration dehydration. Finally, the collected filtrate will be returned or discharged.
Advantage
1. Small design
a. The design of the dehydrator is compact, including an electric control cabinet, a metering box, a flocculation mixing box, and the main body of the dehydrator.
b. It occupies very little space and is easy to maintain and replace; It is small in weight and easy to operate.
2. Not easy to plug and unplug
a. Equipped with self-cleaning function. There is no need to clean the filter to prevent clogging, reduce flushing water volume, and reduce the burden of internal circulation.
b. Skilled in dehydration of oily sludge.
3. Low speed operation
a. The rotational speed of the screw shaft is about 2-3 revolutions per minute, with low power consumption.
b. Fewer faults, less noise and vibration, safe operation.
4. Simple operation

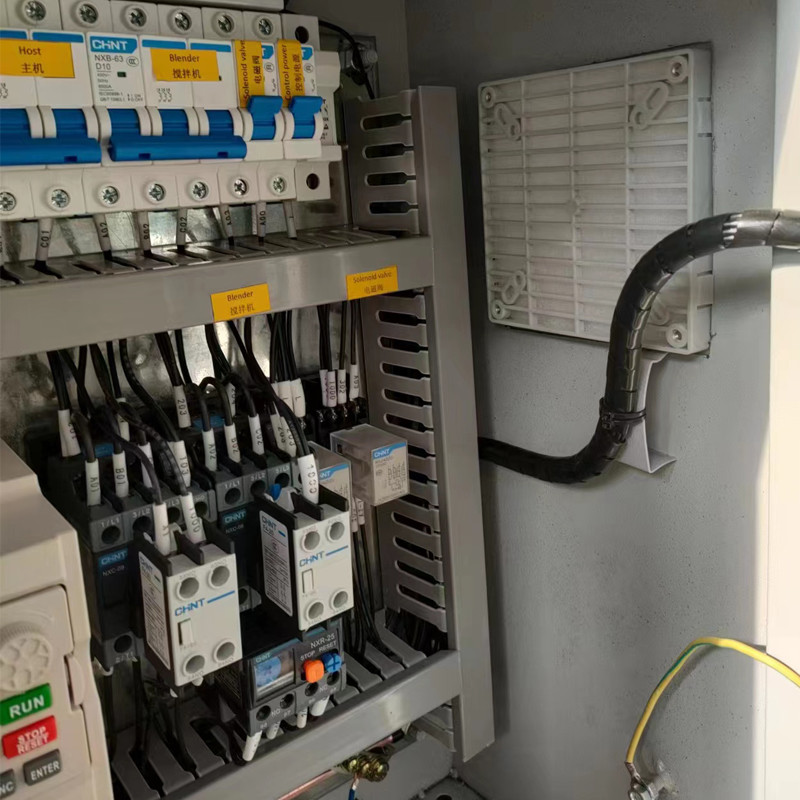

a. Through the electrical control cabinet, it can be linked with the bubble machine, mud pump, and dosing pump to achieve 24-hour continuous operation.
b. Short maintenance time and simple maintenance.
5. Durable
a. The body is made of stainless steel, almost all of which can maximize its service life.
b. The replacement parts are only the screw shaft and travel ring, and the working time is long.
