500lph Reverse Osmosis Water Purification System for Drinking stainless steel Reverse Osmosis equipment Manufacturer
Reverse osmosis (R.O.) water purification plant is one of the most advanced technologies to purifier water by using the pressure difference of semi permeable/reverse osmosis membranes to purify. RO system is the core components of pure water filtration plant. It is effective to remove asbestos, many taste, color, odor producing chemicals, particulates, calcium,magnesium, bacterials, turbidity and radium etc.Thus, it can purify underground water, tap water, lake, river, seawater, blackish water etc, and widely be used in food&beverage,pharmaceutical,chemical industry, electronic industry etc.
Advantage
1.The system can produce water continuously, fully automatic.
2.No need chemical to regenerate, easy operation and maintenance.
3.Core components of RO system are CNP pump and Vontron RO membranes.
4.Automatically switch on when low water level in pure water tank, and switch off when high water level in raw water tank.
5.The system will flush RO membranes automatically about 90s, reducing membranes polluted speed.
6.Water shortage protection and low pressure protection switch for pumps.
7.Conductivity monitor will detect water quality online continuously and show data.
8.Water flow meters, pressure gauges, solenoid valves, regulating control valves, control panel are applied in the whole system.
9. RO controller makes whole RO system operating automatically.
10.Easily control and maintenance.
Working process
Raw water tank→ Raw water booster pump→quartz sand filter→activated carbon filter→water softener (optional)→security filter→high pressure pump→RO system→UV sterilizer (optional)→pure water tank.
Parameter
| Type | LD-250L | LD-500L |
| Raw Water Source | Tap water/well water/river water, etc | |
| Applicable Number Of People | 100-200 | 200-400 |
| Voltage | 220V 50HZ/Customization | |
| Power | 650W | 1000W |
| Water Pressure Requirements(Mpa) | 0.2-0.4 | |
| Capacity(L/H) | 250 | 500 |
| Filtering Accuracy(μm) | 0.0001 | |
| RO Membrane | 4040 reverse osmosis membrane * 1 pcs | 4040 reverse osmosis membrane * 2 pcs |
| Flushing Method | Automatic flushing | |
| Control Mode | Intelligent control fully automatic operation | |
| Size(mm) | 650*500*1620 | |
| Core Replacement Cycle | Activated carbon for 6-12 months;RO membrane 2-3 years | |

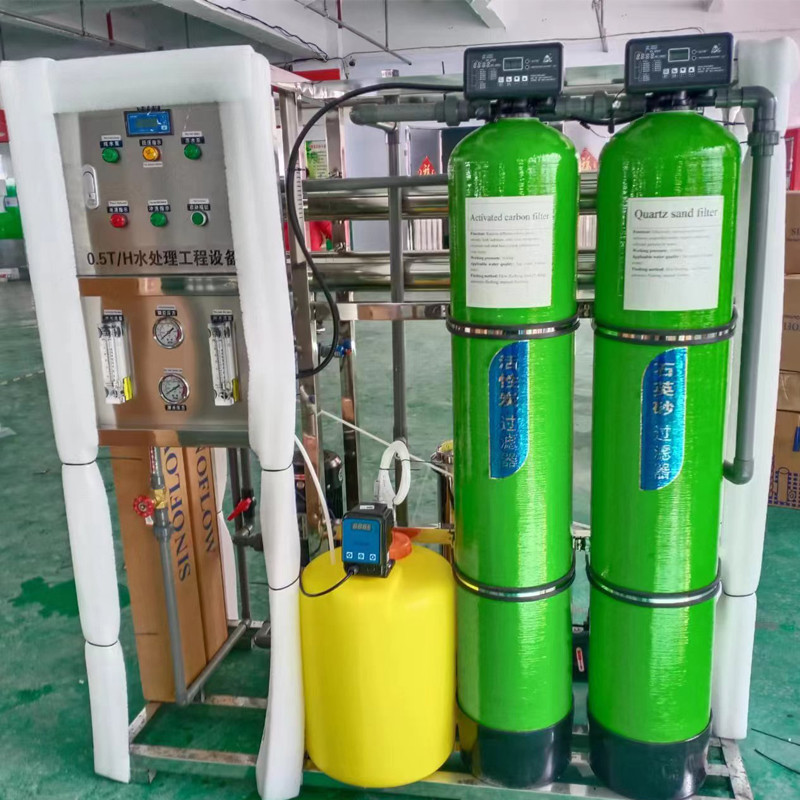

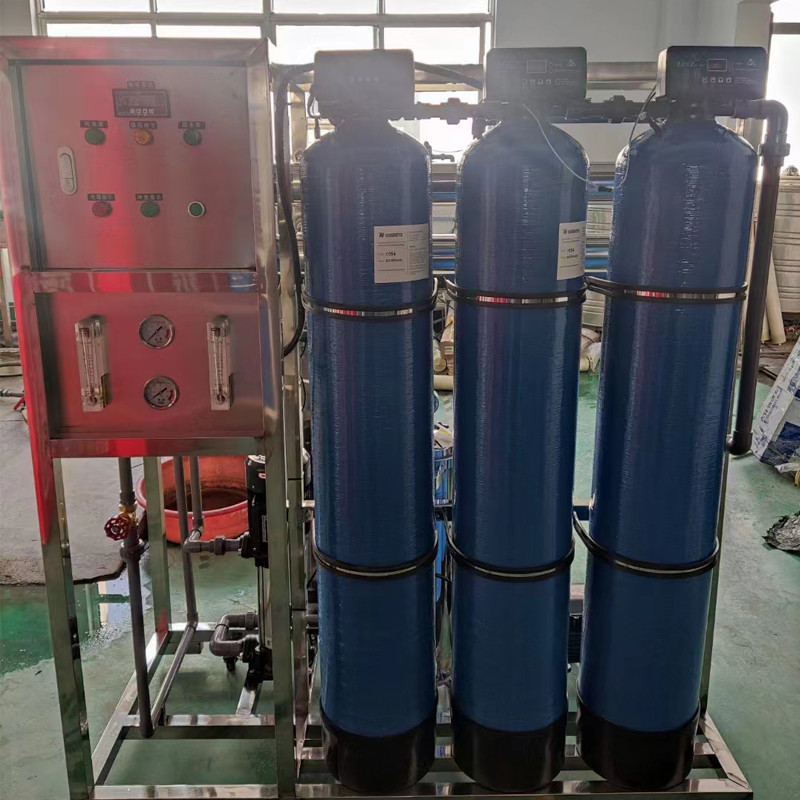

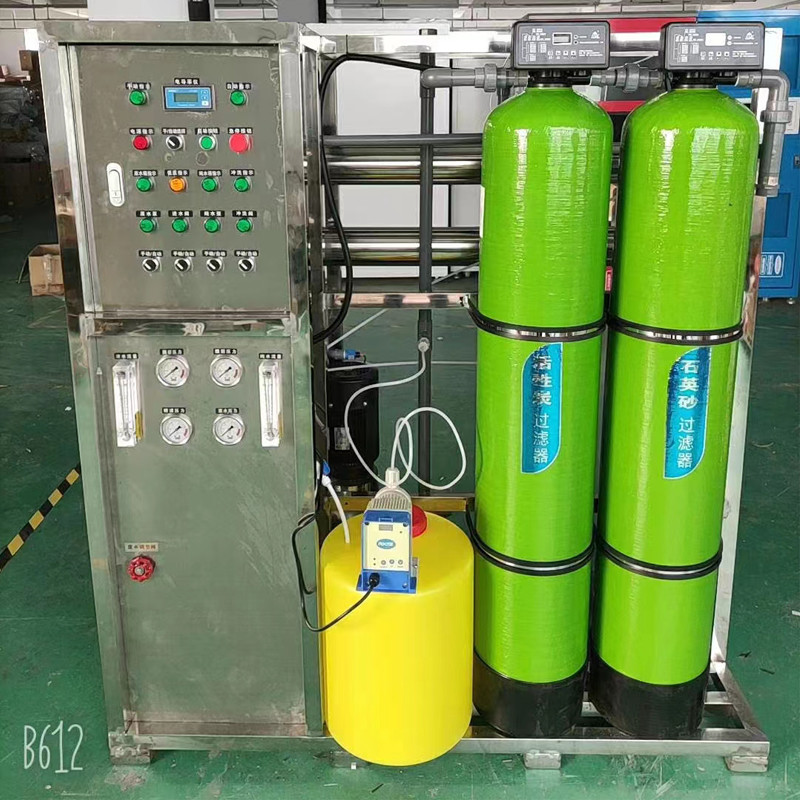

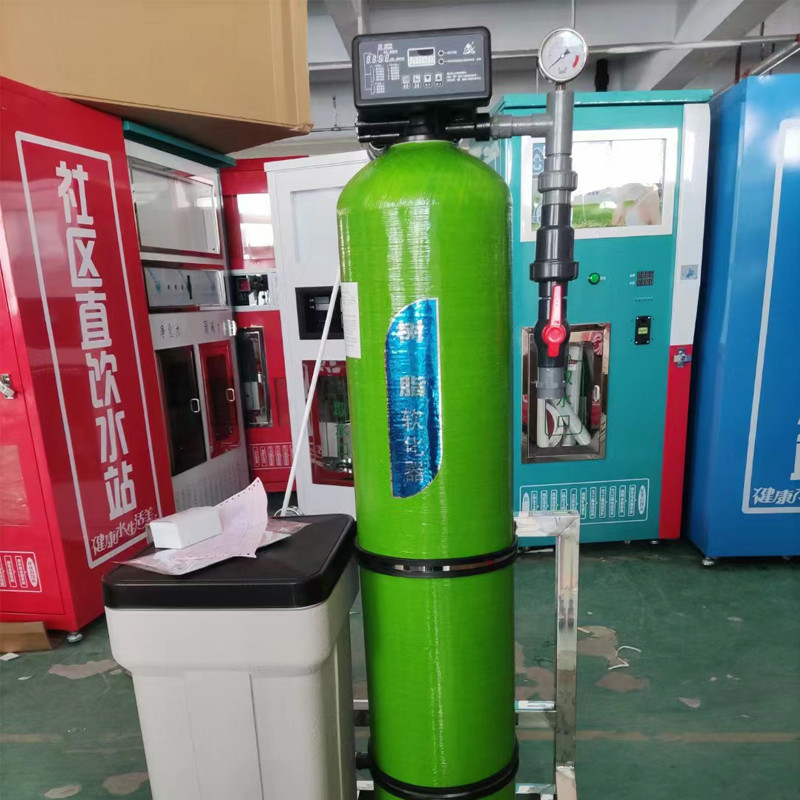

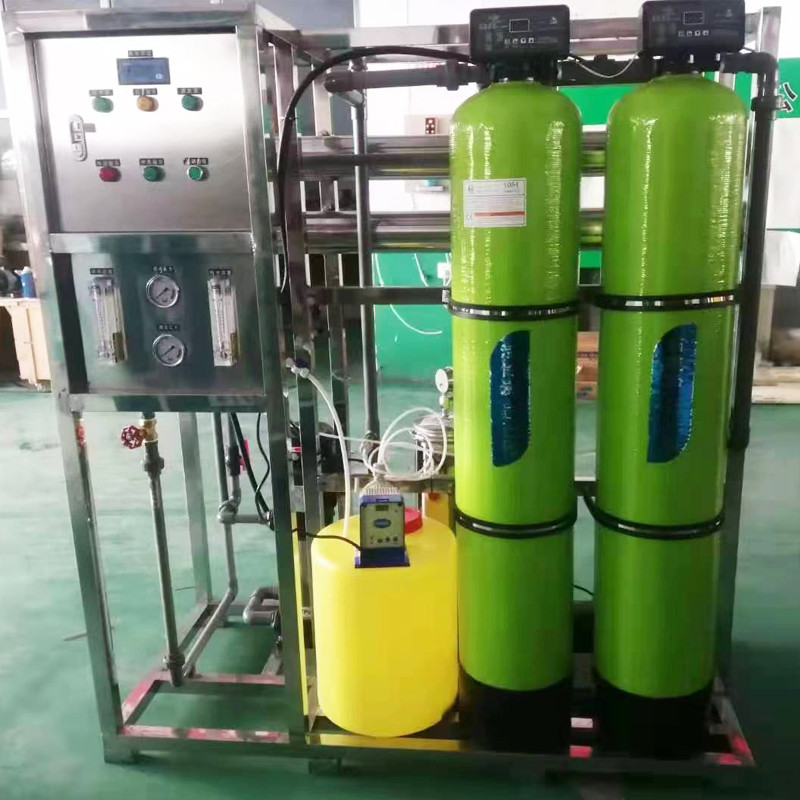

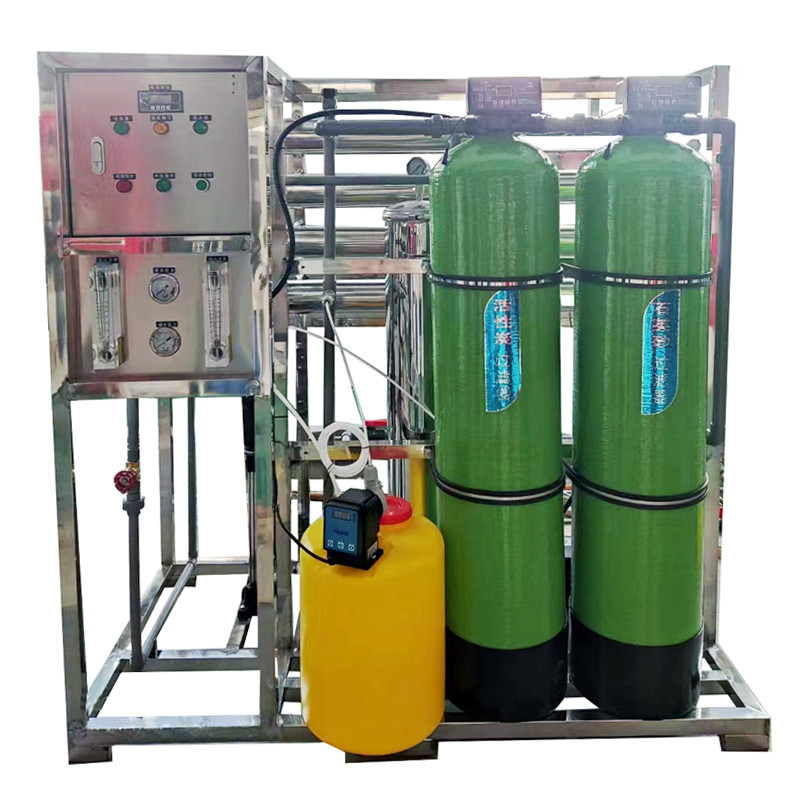

Real Picture
Company Profile
Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers. Main business: "Petrochemical Wastewater Treatment, Urban and Rural Wastewater Treatment, Waste Gas Collection and Treatment, Industrial Wastewater Treatment, etc."
Main equipment: "Integrated treatment equipment, grille decontamination machine, sand water separator, mud scraper, air flotation device, dosing device, sludge thickener, rotary drum micro filter, conveyor, etc."
The technical team participates in technical exchange meetings every year, exchanges experience with professionals, continuously improves technical competitiveness, and provides customers with the clearest and most practical design solutions.
The processing team controls the manufacturing details of each equipment, and manufactures the most sophisticated and reliable equipment for customers.
The company has passed ISO9001-2008 international standard quality system certification.
We look forward to contacting you, please give us a chance. I hope we can trust each other for mutual benefit and win-win results.
FAQ
Q: What certificates do you have? A: CE/ISO/SGS
Q: Do you offer after-sales service?
A: Yes. Engineers available.
Q: How long is your warranty?
A: 2 years after the arrival of the goods. During this period, as long as it is not a man-made damage, we send the damaged parts free of charge.
Q: What about your delivery Time?
A: Normally within 45 days against down payment.
Q: What about the package of your export product?
A: We use anticorrosion wooden case with foam inside.
Q: What kind of payment do you accept?
A:T/T, L/C, PAYPAL, Cash, D/P, D/A, WESTERN UNIION, MONEYGRAM
