Name: 20m3/H Spiral Sludge Dewatering Machine Farm Manure Sludge Treatment Equipment
Brand: Jiangsu Longdai Environmental Protection Co., Ltd.
SKU: LD-251
Price: 3,100.00 USD
Availability: InStock

Home Products Sludge Press Machine

20m3/H Spiral Sludge Dewatering Machine Farm Manure Sludge Treatment Equipment

Product Details:

Place of Origin:	jiangsu China
Brand Name:	longdai
Certification:	ISO9001
Model Number:	LD-251

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiatable
Packaging Details:	Export polywood
Delivery Time:	20 days
Payment Terms:	L/C, T/T
Supply Ability:	2000 sets per Years

Contact Now

Detailed Product Description

Product Name:	Sludge Dewatering Screw Press Machine,screw Sludge Dewatering Machine	Material:	Stainless Steel 304
Application:	Farm	Type:	Screw Press
Function:	Solid Liquid Separator	Usage:	LIQUID-SOLID SEPERATION
Capacity:	Meet Client's	Control:	Automatic Control Box
After-sales Service Provided:	Video Technical Support\Online Support	After Warranty Service:	Video Tech
Highlight:	20m3/H Sludge Dewatering Machine , Manure Spiral Sludge Dewatering Machine , Manure Spiral Sludge Treatment Equipment

20m3/h Spiral sludge dewatering machine farm manure sludge treatment equipment

This type of equipment is mainly used for sludge dewatering. After dewatering, the water content of sludge can be reduced to 75% -85%. The stackable screw type sludge dewatering machine integrates the full-automatic control cabinet, flocculation conditioning tank, sludge thickening and dewatering body and liquid collecting tank. It can realize high-efficiency flocculation under the condition of full-automatic operation, and continuously complete sludge thickening and pressing dehydration. Finally, the collected filtrate will be returned or discharged.

Working Principle

During the operation of the equipment, the sludge enters the filter cartridge from the feed port and moves to the discharge port by being pushed by the spiral blades. As the pitch of the spiral shaft blades gradually decreases, the pressure on the sludge also increases, and begins to dehydrate under the pressure. Water flows out from the gap between the fixed ring and the traveling ring.At the same time, the equipment relies on the self-cleaning function between the fixed ring and the traveling ring to clean the filter gap, which is not easy to be blocked, After dehydration, the mud cake is discharged from the discharge port under the propulsion of the screw shaft.

Application scenarios

Municipal wastewater, papermaking wastewater, chemical wastewater, food and beverage processing wastewater, industrial production wastewater, papermaking wastewater, petroleum processing and mining wastewater, etc.

Parameters

Specification and dimension Model		DL-101	DL-102	DL-201	DL-202	DL-301	DL-302	DL-303
Handling capacity (m3／h)	Ind concentration S．S．0.2～0.5％)	0.6~1.5	1.2~3.0	1.8~4.5	3.6~9.0	6.0~15	12~30	18~45
	Ind concentration (S．S．0.5～2.0％)	0.25~0.6	0.5~1.2	0.75~1.8	1.5~3.6	2.5~6.0	5.0~12	7.5~18
	Ind concentration (S．S．2.0～5.0％)	0.1~0.25	0.2~0.5	0.3~0.75	0.6~1.5	1.0~2.5	2.0~5.0	3.0~7.5
Exdry amount (kg／h)	Ind concentration (S．S．0.2～0.5％)	0~3.0	2.4~6.0	3.6~9.0	7.2~18	12~30	24~60	36~90
	Ind concentration (S．S．0.5～2.0％)	0~5.0	5.0~10	9.0~15	18~30	30~50	50~100	90~150
	Ind concentration (S．S．2.0～5.0％)	0~5.0	5.0~10	9.0~15	18~30	30~50	50~100	90~150
Water content of mud cake (％)		75~85	75~85	75~85	75~85	75~85	75~85	75~85
Spirical Didiameter (mm)x Quantity (root)		100x1	100x2	200x1	200x2	300x1	300x2	300x3
Power (KW)		0.2	0.3	0.6	0.8	0.8	1.2	1.95
contour size of the unit(s) (ww)	L	1816	1816	2500	2500	3255	3455	3605
	W	756	910	850	935	985	1295	1690
	H	1040	1040	1270	1270	1600	1600	1600
Reference Weight(kg)		190	275	360	470	820	1350	1820

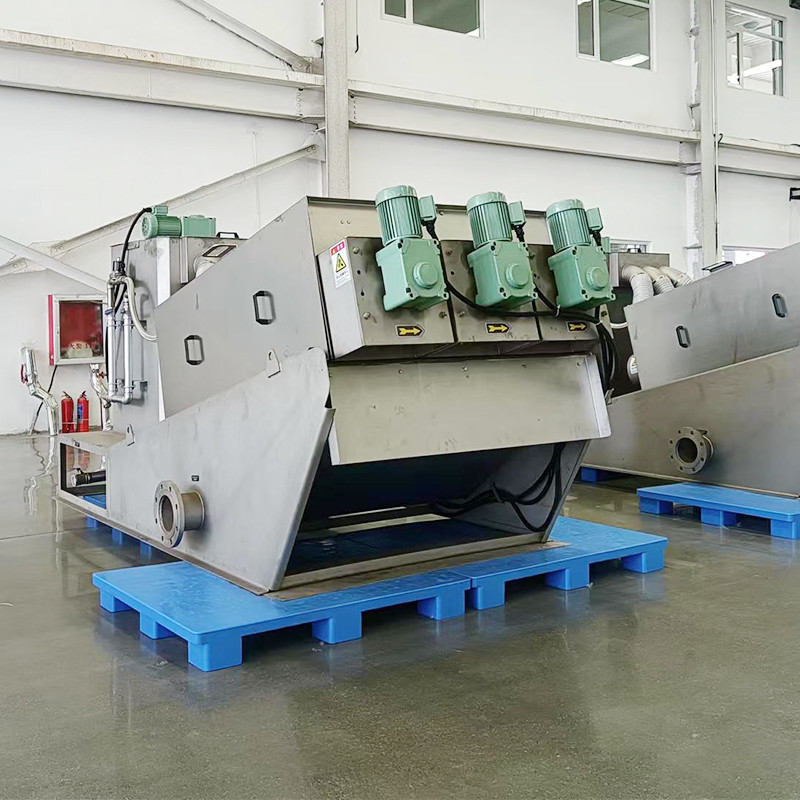

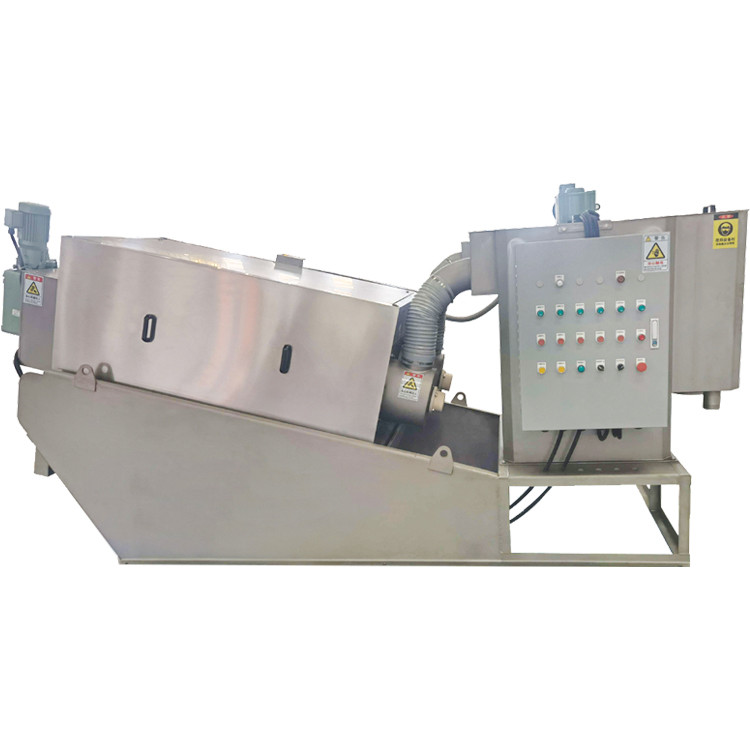

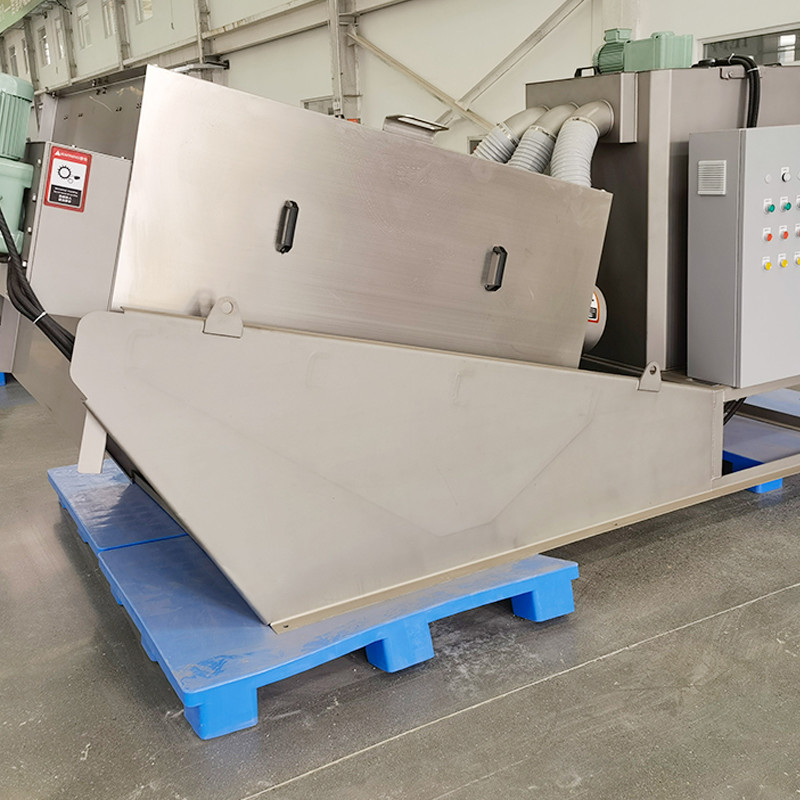

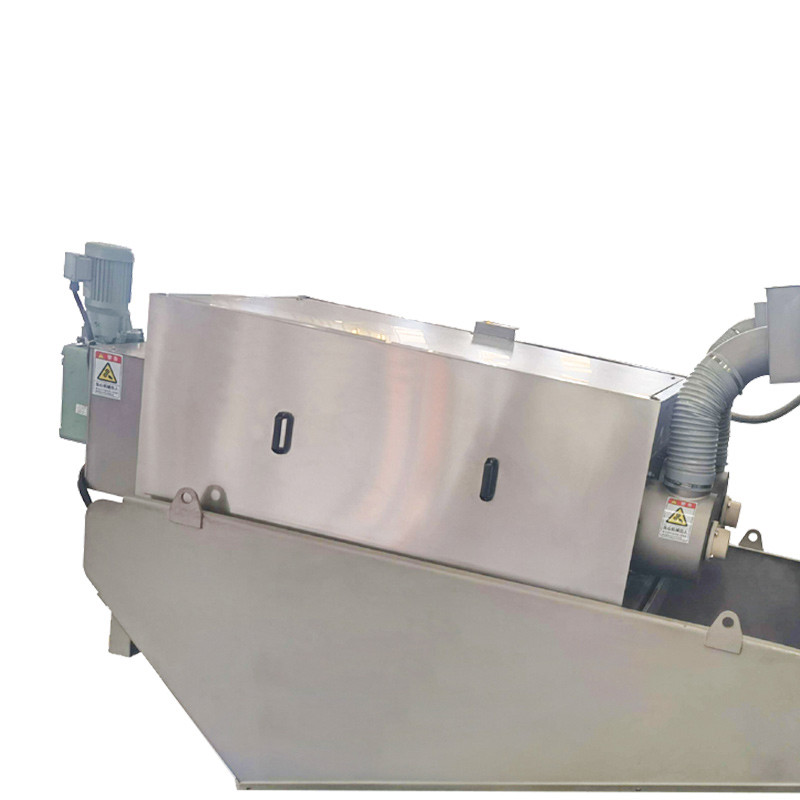

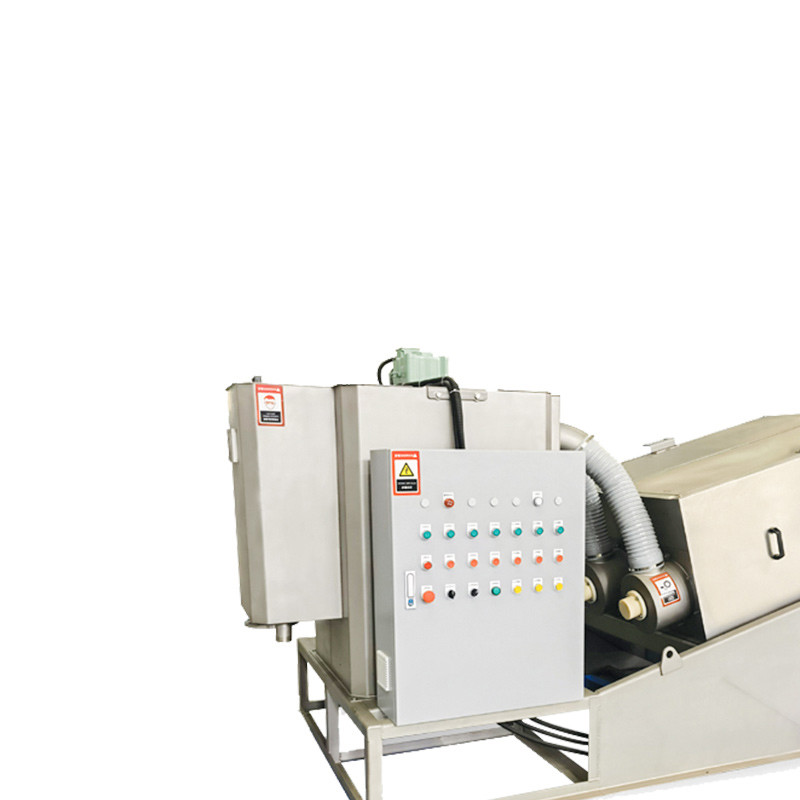

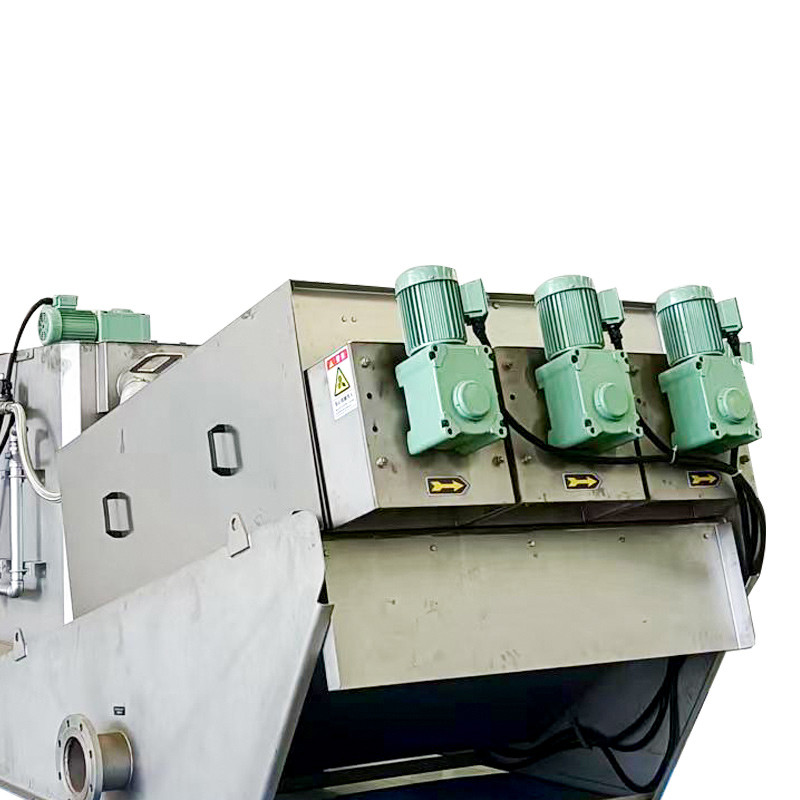

Real picture

Company Profile

Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.

Main business: "Petrochemical Wastewater Treatment, Urban and Rural Wastewater Treatment, Waste Gas Collection and Treatment, Industrial Wastewater Treatment, etc."

Main equipment: "Integrated treatment equipment, grille decontamination machine, sand water separator, mud scraper, air flotation device, dosing device, sludge thickener, rotary drum micro filter, conveyor, etc."

The technical team participates in technical exchange meetings every year, exchanges experience with professionals, continuously improves technical competitiveness, and provides customers with the clearest and most practical design solutions.

The processing team controls the manufacturing details of each equipment, and manufactures the most sophisticated and reliable equipment for customers.

The company has passed ISO9001-2008 international standard quality system certification.

We look forward to contacting you, please give us a chance. I hope we can trust each other for mutual benefit and win-win results.

FAQ

Q: What certificates do you have?

A: CE/ISO/SGS

Q: Do you offer after-sales service?

A: Yes. Engineers available.

Q: How long is your warranty?

A: 2 years after the arrival of the goods. During this period, as long as it is not a man-made damage, we send the damaged parts free of charge.

Q: What about your delivery Time?

A: Normally within 45 days against down payment.

Q: What about the package of your export product?

A: We use anticorrosion wooden case with foam inside.

Q: What kind of payment do you accept?

A: T/T, L/C, PAYPAL, Cash, D/P, D/A, WESTERN UNIION, MONEYGRAM
