10m3/H Sludge Dewatering Machine Filtration Concentration Press Solid Liquid Separation Integrated Screw Stacker

10m 3/ H Sludge Dewatering Machine Filtration Concentration Press Solid-Liquid Separation Integrated Screw Stacker

The main body of the screw-type sludge dewatering machine is composed of multiple fixed rings, a moving ring and a spiral filter part, which organically combines the filtration concentration technology and the pressing technology, and completes the sludge concentration and pressing and dehydration in one cylinder; In the cavity, it uses the relative swimming between the fixed and movable laminations to quickly discharge the filtrate and never block it; in the dehydration cavity, the continuous shrinkage of the volume in the spiral cavity is used to enhance the internal pressure and the pressure regulation mechanism of the back pressure plate, so that the The unique and subtle filter body mode replaces the traditional filter cloth and centrifugal filtering methods, and its advanced solid-liquid separation and self- cleaning technology will create a new era of sludge dewatering.

Main Features

Laminated dehydration body:
The stacked screw body is a cylindrical filter structure formed by stacking the fixed ring and the traveling ring and inserting
the screw shaft therethrough. While conveying sludge, the screw shaft drives the traveling ring to make a circular motion. It hasthe function of automatically cleaning the filter slot and is not easy to block, so that the dehydrator can operate continuously and stably.
Wide treatment area, suitable for sludge dewatering in all walks of life:
Municipal wastewater, papermaking wastewater, chemical wastewater, food and beverage processing wastewater, industrial production wastewater, papermaking wastewater, petroleum processing and mining wastewater, etc.
Various product models, exquisite design, small footprint:
Compared with the traditional belt type, plate frame and centrifugal dewatering machine, the stacked screw sludge dewatering machine adopts the three-dimensional integrated design of dewatering body, flocculation mixing tank and electric control device.
It is portable to install, occupies a small space, and has good compatibility with auxiliary supporting equipment, greatly reducing the design and construction cost in the early stage. At the same time, as for the replacement project, due to the exquisite design of the overlapping screw, there is no need to carry out the civil construction again.
Simple operation and maintenance:
It can realize 24-hour full-automatic unmanned operation through PLC Remote Control and other methods, reducing the employment and maintenance costs of on-site operators. At the same time, because the design is exquisite, the operation is simple, there is no complicated requirement, and it is easy to learn.
Water saving, power saving and low noise
Since the laminated dehydration main body has the function of self-cleaning filter slot, it does not need a large amount of cleaning water for blocking. Compared with the dehydrator with the same processing capacity, the washing water consumption of the stacker is 1% of that of the belt dehydrator The screw shaft for conveying and compressing sludge has a rotation speed of 2-5 revolutions per minute, low power consumption and economic applicability. The power consumption is 5% of that of the centrifuge.At the same time, due to the small rotating speed and intermittent flushing, the equipment operates without noise.

Parameters

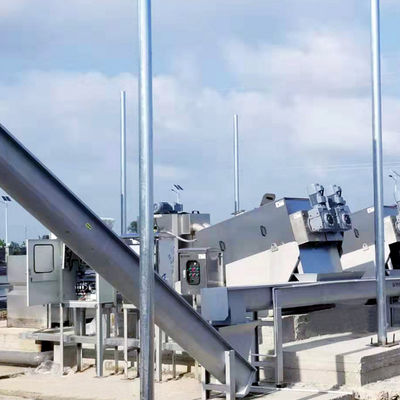

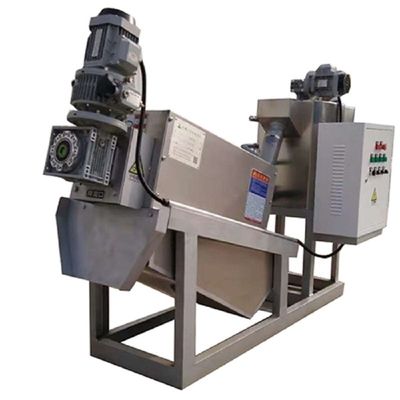

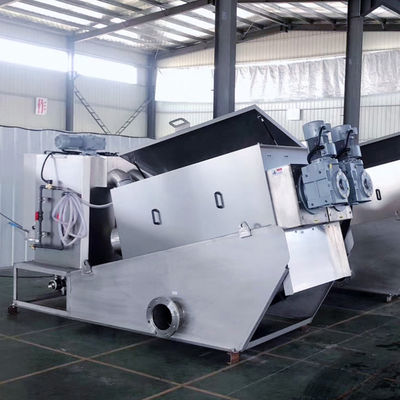

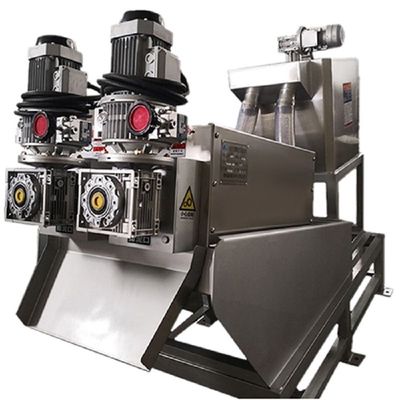

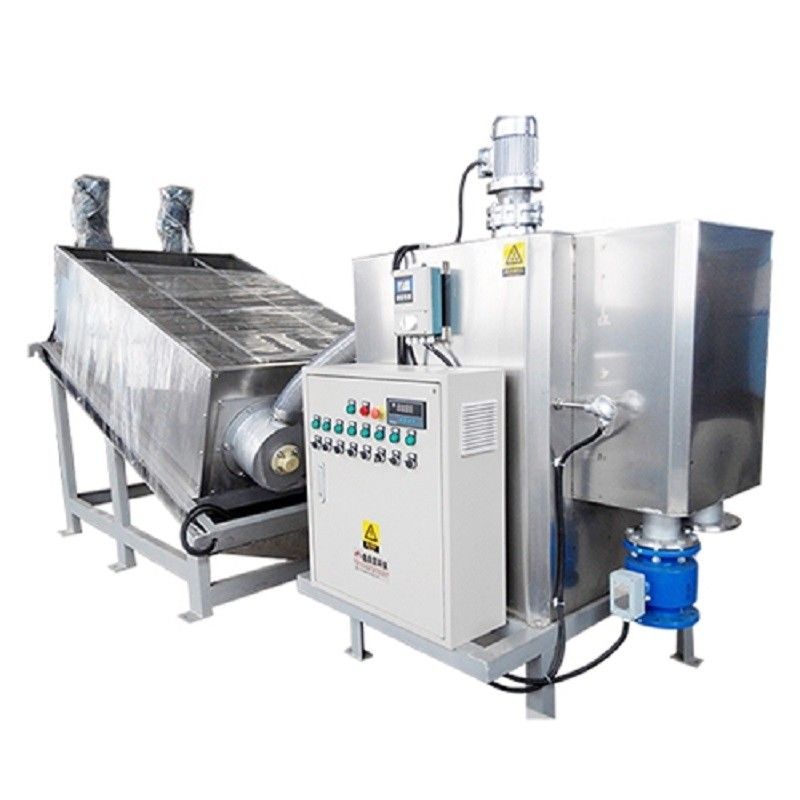

Real picture

Company Profile

Jiangsu Longdai Environmental Technology Co., Ltd. is an environmental protection equipment manufacturer with 11 years of experience. It has provided a large number of sophisticated environmental protection equipment at home and abroad, established three branches in China, and cooperated with many universities to build Longdai R&D center. There are 4 middle doctors, 10 masters, and 25 senior engineers.

Main business: "Petrochemical Wastewater Treatment, Urban and Rural Wastewater Treatment, Waste Gas Collection and Treatment, Industrial Wastewater Treatment, etc."

Main equipment: "Integrated treatment equipment, grille decontamination machine, sand water separator, mud scraper, air flotation device, dosing device, sludge thickener, rotary drum micro filter, conveyor, etc."

The technical team participates in technical exchange meetings every year, exchanges experience with professionals, continuously improves technical competitiveness, and provides customers with the clearest and most practical design solutions.

The processing team controls the manufacturing details of each equipment, and manufactures the most sophisticated and reliable equipment for customers.

The company has passed ISO9001-2008 international standard quality system certification.

We look forward to contacting you, please give us a chance. I hope we can trust each other for mutual benefit and win-win results.

FAQ

Q: What certificates do you have?



A: CE/ISO/SGS



Q: Do you offer after-sales service?



A: Yes. Engineers available.



Q: How long is your warranty?



A: 2 years after the arrival of the goods. During this period, as long as it is not a man-made damage, we send the damaged parts free of charge.



Q: What about your delivery Time?



A: Normally within 45 days against down payment.



Q: What about the package of your export product?



A: We use anticorrosion wooden case with foam inside.



Q: What kind of payment do you accept?



A: T/T, L/C, PAYPAL, Cash, D/P, D/A, WESTERN UNIION, MONEYGRAM
