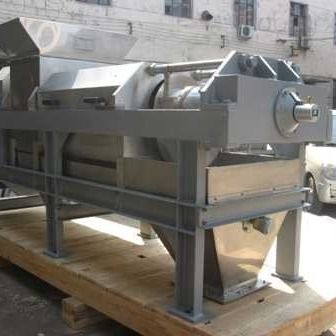

Stable And Safe operation Pressing Squeezer For Urban Sludge Press Machine Wastewater Treatment Plant
To Our Customers:
We engage in manufacturing lots of wastewater treatment equipments. Any question, please feel free to contact us. Thanks.
Parameters
| Model Number / Parameters | LYZ-200 | LYZ-250 | LYZ-300 | LYZ-350 | LYZ-400 | |
| Spiral nominal diameter D(mm) | 200 | 250 | 300 | 350 | 400 | |
| Feed and material handling quantity Q(m3／h) | 1.2 | 2.3 | 4.0 | 6.5 | 9.0 | |
| Revolution speed of screw n(r／min) | 7~8 | |||||
| Power of motor N(KW) | 1.1 | 1.5 | 2.2 | 3.0 | 4.0 | |
| Ineding water content(％) | 90~95 | |||||
| Water content of gate slag effluent(％) | ≤65 | |||||
| Installation size (mm) | B | 350 | 400 | 440 | 490 | 540 |
| B1 | B-80 | |||||
| B2 | Supporting with corresponding equipment | |||||
| L | Supporting with corresponding equipment | |||||
| L1 | L+480 | |||||
| L2 | L+1800 | |||||
| H | L≥1200 | |||||
| H1 | Supporting with corresponding equipment | |||||
Main Features
1. The drive device adopts a shaft-mounted gear reducer, which has a compact structure, stable and safe operation.
2. The spiral blade is welded on the screw shaft to enhance the rigidity and pressing capacity of the blade. The spiral blade adopts the variable pitch form.
3. The discharge pipe and the press are simplified as 45º inclination.
4. The press frame is fixed by expansion bolts, no embedded parts are needed.
Main Parameters and Installation Size Chart
Outline and Installation Chart
Packing and Delivery
The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
About Us
The main products include mechanical bar screen, air flotation device, dosing device, mud scraper, cooling tower, decanter, chemical degreasing device, hydraulic screen, sand water separator, filter, conveyor, thickener , Biological filter, softened water, buried sewage treatment equipment, etc.
FAQ:
Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 15,000m² And Produces Machines 2000 Sets Per Year.
Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
A: A: Our Company Has More Than 20 Years Professional Experience. We Cooperate Over 800 Customers in China And Overseas. We Export Nearly 60 Countries All Over The World. And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts, Field Maintenance Repair Service
Q: How Long is Your Warranty?
A: 2 Years After The Arrival Of The Goods. During This Period, As Long As It Is Not a Man-Made Damage, We Send The Damaged Parts Free Of Charge.
