Sludge Press In Urban Sewage Treatment Plant Rainwater Treatment Device Used For Dewatering
To Our Customers:
We are not professional in the picture beautifying, but we are engaged in manufacturing almost all kinds of wastewater treatment equipments. Any question, please feel free to contact us. Thanks.
Application

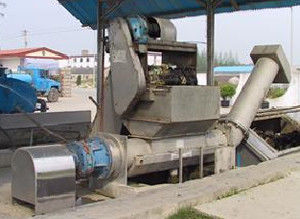

It is suitable for the treatment of bar screen slag in urban sewage treatment plants, sewage pretreatment devices in residential quarters, municipal rain, sewage pumping stations and water plants, etc.
Parameters
| Model Number / Parameters | LYZ-200 | LYZ-250 | LYZ-300 | LYZ-350 | LYZ-400 | |
| Spiral nominal diameter D(mm) | 200 | 250 | 300 | 350 | 400 | |
| Feed and material handling quantity Q(m3／h) | 1.2 | 2.3 | 4.0 | 6.5 | 9.0 | |
| Revolution speed of screw n(r／min) | 7~8 | |||||
| Power of motor N(KW) | 1.1 | 1.5 | 2.2 | 3.0 | 4.0 | |
| Ineding water content(％) | 90~95 | |||||
| Water content of gate slag effluent(％) | ≤65 | |||||
| Installation size (mm) | B | 350 | 400 | 440 | 490 | 540 |
| B1 | B-80 | |||||
| B2 | Supporting with corresponding equipment | |||||
| L | Supporting with corresponding equipment | |||||
| L1 | L+480 | |||||
| L2 | L+1800 | |||||
| H | L≥1200 | |||||
| H1 | Supporting with corresponding equipment | |||||

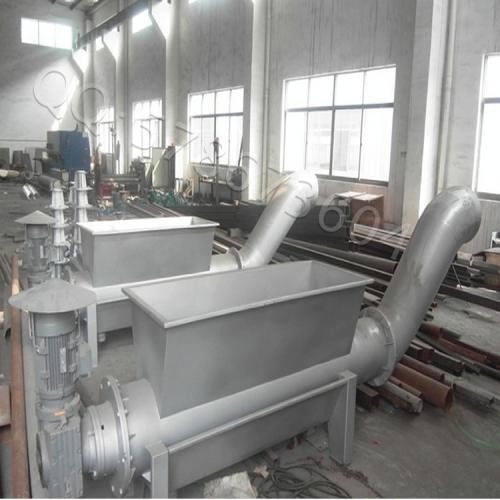

Structure and Working Principle

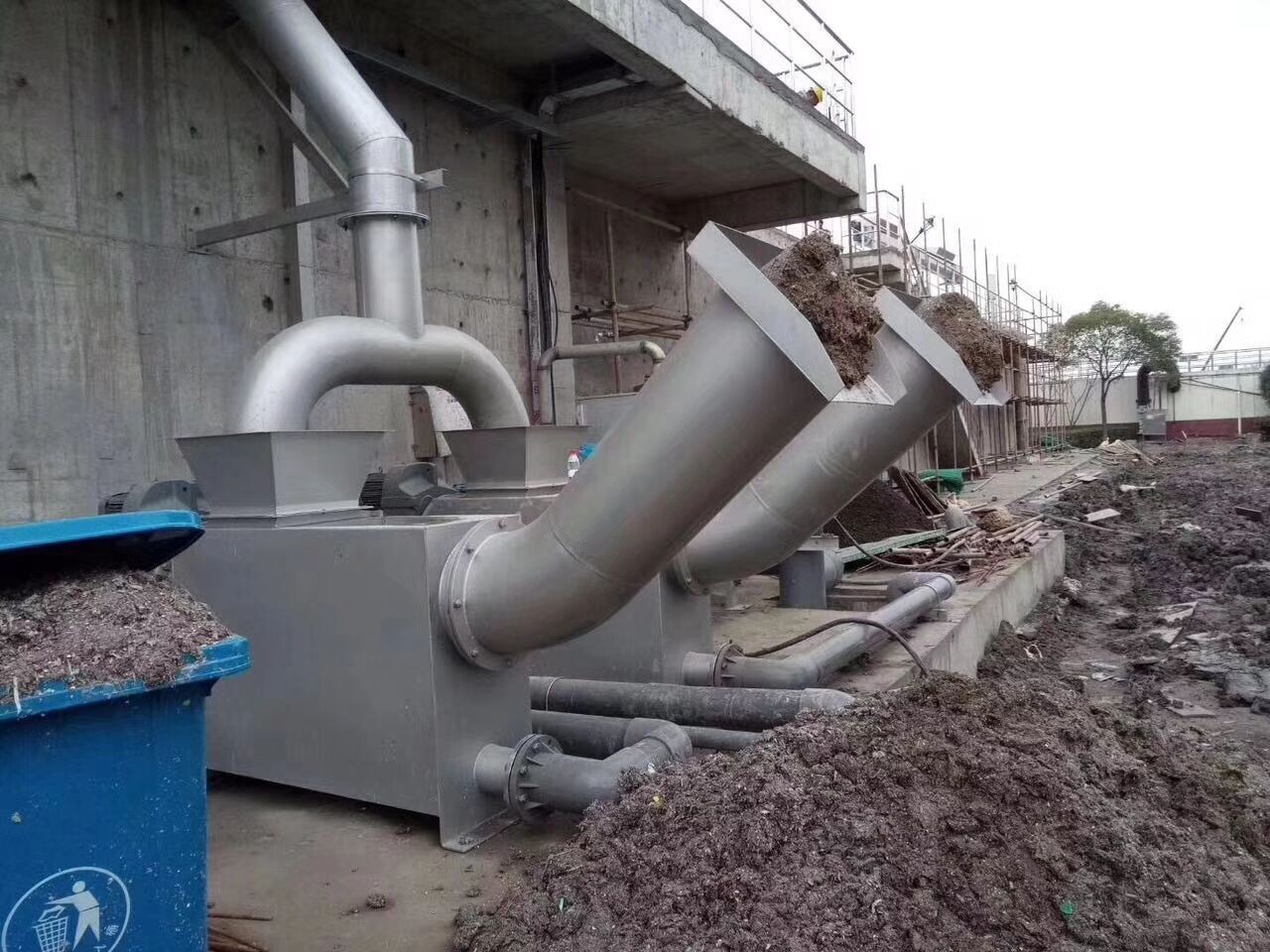

The equipment adopts a shaft screw type. When the material enters the hopper, the bar slag is pushed into the discharge pipe through the spiral body, and the bar slag is compressed by the gravity to push out the discharge port, and is directly discharged to the garbage trolley for transportation inside and outside. Waste water is discharged through the drain pipe after the filter screen and the water collection pipe.
Main Features
1. The drive device adopts a shaft-mounted gear reducer, which has a compact structure, stable and safe operation.
2. The spiral blade is welded on the screw shaft to enhance the rigidity and pressing capacity of the blade. The spiral blade adopts the variable pitch form.
3. The discharge pipe and the press are simplified as 45º inclination.
4. The press frame is fixed by expansion bolts, no embedded parts are needed.
Packing and Delivery
The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
About Us
Located in Yixing, an advanced and beautiful city of Jiangsu Province, China, Longdai Co., Ltd is a processing equipment supplier of petrochemical industry specialized in environmental processing &integrating independent research and development, design, general contracting, environmental protection equipment manufacturing, and relevant material supply.
FAQ:
Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.
Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 15,000m² And Produces Machines 2000 Sets Per Year.
Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
A: A: Our Company Has More Than 20 Years Professional Experience. We Cooperate Over 800 Customers in China And Overseas. We Export Nearly 60 Countries All Over The World. And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates.
