| Place of Origin: | China |
| Brand Name: | Dongdai |
| Certification: | 9001 |
| Model Number: | PD-500 |
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiatable |
| Packaging Details: | Export polywood |
| Delivery Time: | 3-5 weeks |
| Payment Terms: | T/T, Wechat Pay, Alipay |
| Supply Ability: | 1000 Sets per Years |
| Standard: | ISO | Material: | Stainless Steel |
|---|---|---|---|
| Product Name: | Screw Conveyor Machine | Color: | Blue |
| Surface Treatment: | Polishing | Service: | Customized Design |
| Transmission Band Width: | 500mm | Delivery Value: | 15.0-25.0m3/h |
| Highlight: | Portable Trash Removal Conveyor,500mm Trash Removal Conveyor,25.0m3/h Screw Conveyor Machine |
||

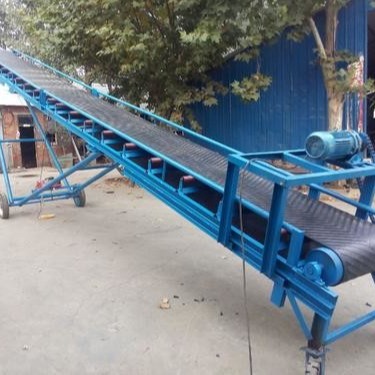

Durable China Screw Belt Conveyor Easy Maintain Machine Trash Removal conveyor belt material portable Optional Color
Attention:
All types of equipments can be customized according your requirement. Please feel free to tell your parameters, flow charts or other demands. Quick Reply will be delivered in 12 hours by email or online chat.
Application
The PD belt conveyor is suitable for chemical, metallurgical, coal, water and electricity, building materials and other departments. It can transport various bulk, granular and other bulk materials, so it is often matched with the grid or dewatering machine in the city sewage. Slag or dewatered sludge.
Parameters
| Model | PD-500 | PD-800 | PD-1000 | ||
| 500 | 800 | 1000 | |||
| Transmission bandwidth B(mm) | |||||
|
Delivery value Q (m3/h) |
Installation angle α(°) |
0.0 | 25.0 | 50.0 | 75.0 |
| 10.0 | 22.5 | 45.0 | 67.5 | ||
| 15.0 | 18.75 | 37.5 | 56.25 | ||
| 20.0 | 15.0 | 30.0 | 45.0 | ||
| Electric drum diameter D(mm) | 220,240,315,400,500(Depending on the L, the) | ||||
| Installation size (mm) | B1 | B+250 | |||
| L | According to the user's requirements | ||||
| 工 | According to the user's requirements | ||||
| H1 | H+80+(D/2) | ||||

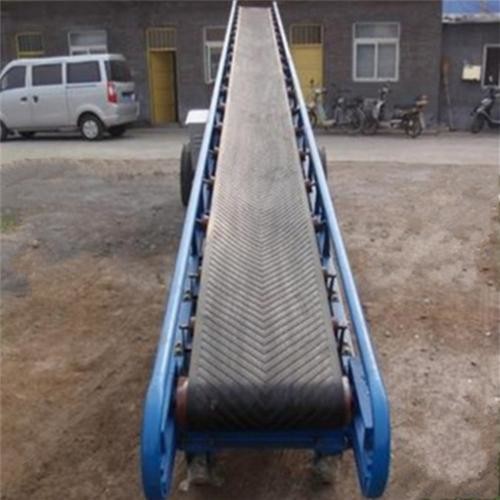

Structure and Working Principle
The equipment adopts a continuous trough belt type. The material falls on the conveyor belt from the bar or the discharge port of the dewatering machine. Driven by the electric drum, the material moves from one end to the other, and the end is connected with the trash can to deal with.
Main Features
1. The equipment is reliable in operation, with large conveying capacity, long conveying distance, multi-point loading materials and continuous conveying, etc.
2. The driving device adopts oil-cooled electric drum, with protection grade IP55, compact structure, small floor space and easy maintenance.
3. The equipment adopts spiral tensioning device to ensure the safe, reliable and effective operation of the conveyor belt.
4. Conveyor belt material is butyl rubber, and adopts vulcanization connection method, which is convenient for cleaning, corrosion resistance and long life.
5. There are slag baffles on both sides of the upper trough-shaped supporting rod, so that the slag sewage does not flow and overflow, and the environment is clean.
6. Easy operation, no blockage, convenient maintenance, can be arranged horizontally, and can be conveyed at an inclined angle. It is an ideal equipment for conveying grille slag.
Main Parameters and Installation Size Chart
Outline and Installation Chart

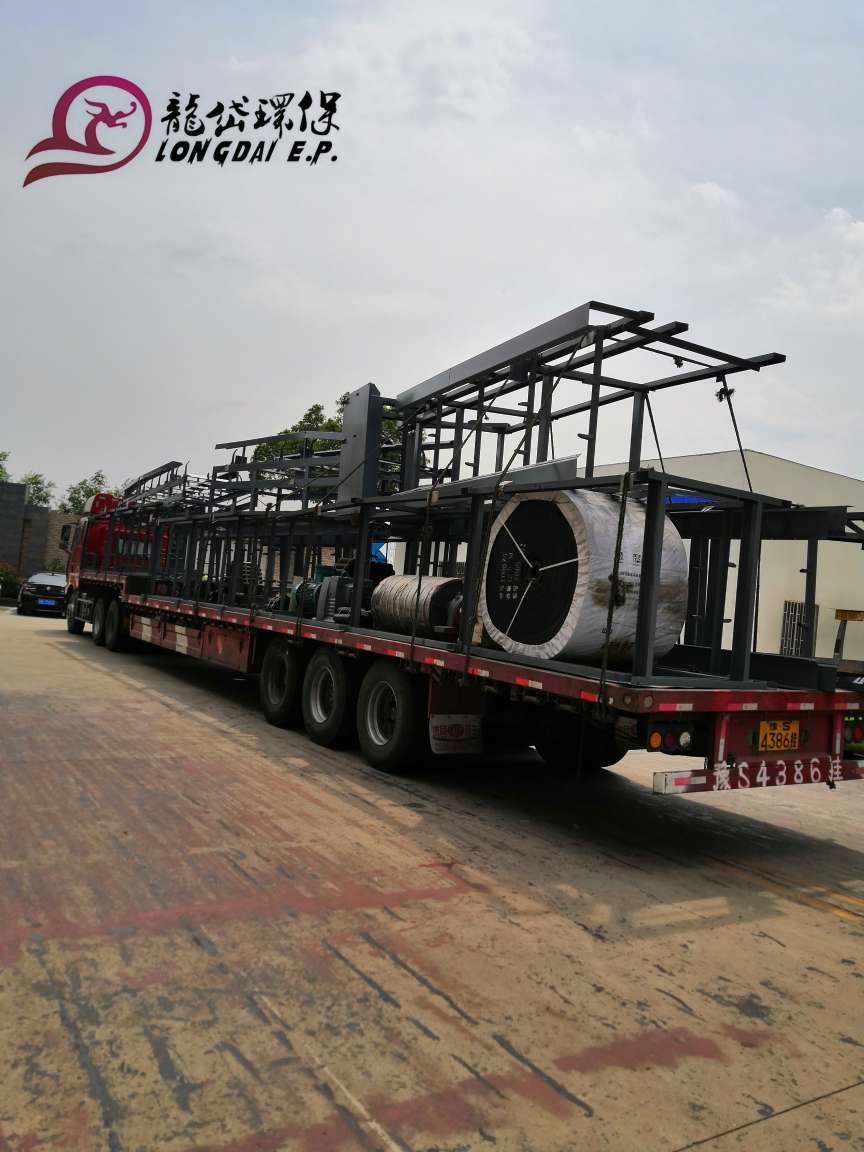

Packing and Delivery
The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
FAQ:
Q: What About Your Produce Time? What Kind Of Transportation Do You Offer?
A:Within 30 Days Against Down Payment. Air, Land & Sea .
Q: What Kind Of Payment Do You Accept?
A: T/T, L/C, Paypal, Cash, D/P, D/A, Unionpay
