The SH Series is a range of automated lime storage and dosing systems designed for efficiency and reliability across various industrial applications. Available in multiple capacities, these systems reduce manual labor, enhance the working environment, and enable full-process automation through precision engineering.
This system is ideally suited for lime dosing in a wide range of industrial wastewater treatment and process applications, including:
Mining, Steel Plant, and Coal Mine Wastewater Treatment
Sludge Conditioning and Dewatering
Power Plant Flue Gas Desulfurization (FGD)
Water Plant Softening (De-hardening)
Fluoride Removal in the Photovoltaic Industry
General Acidic Wastewater Neutralization
Dry Lime Powder Dosing and Weighing
| Model | Storage Capacity (T) | Silo Dimensions (Dia. x H) | Dissolving Tank (Dia. x H) | Feeding Screw (Dia. / Length) | Total Power (kW) | Footprint (L x W) |
|---|---|---|---|---|---|---|
| ST-10T | 10 T | 1.9m x 5.6m | 1.7m x 1.5m | 129mm / 2.8m | 6 kW | 4.5m x 2.0m |
| ST-20T | 20 T | 1.9m x 6.8m | 1.7m x 1.5m | 129mm / 4.5m | 7 kW | 6.2m x 2.5m |
| ST-30T | 30 T | 2.5m x 5.6m | 1.8m x 1.5m | 150mm / 5m | 8 kW | 7.5m x 2.5m |
| ST-40T | 40 T | 2.5m x 7.2m | 1.8m x 1.8m | 150mm / 5m | 8 kW | 7.5m x 2.5m |
| ST-50T | 50 T | 2.5m x 8.0m | 2.0m x 1.8m | 150mm / 5.6m | 10 kW | 7.5m x 2.5m |
| ST-60T | 60 T | 3.0m x 7.0m | 2.0m x 2.0m | 150mm / 5.6m | 10 kW | 8.5m x 2.8m |
| ST-70T | 70 T | 3.0m x 8.0m | 2.0m x 2.0m | 168mm / 6.0m | 12 kW | 8.5m x 2.8m |
| ST-80T | 80 T | 3.0m x 8.5m | 2.0m x 2.0m | 168mm / 6.0m | 12 kW | 8.5m x 2.8m |
| ST-100T | 100 T | 3.5m x 8.0m | 2.5m x 2.2m | 168mm / 6.0m | 15 kW | 10.0m x 3.0m |

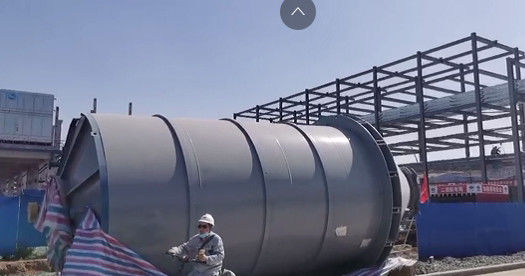

1. Lime Storage System
Components: Feed Pipe, Silo, Top Platform with Guardrail & Ladder.
Key Equipment: Silo-top Dust Collector, Pressure/Vacuum Relief Valve, Vibrating Discharger, Manual Flapper Valve, Star Feeder, Screw Conveyor.
Component Brand: Critical components including the dust collector, discharger, screw conveyor, and level gauge are supplied by the internationally renowned brand WAMO, ensuring reliability and performance.
2. Slurry Preparation System
Components: Water Inlet Pipeline, Drug Dissolving Tank with Mixer, Dosing Tank with Mixer.
3. Control System
Components: PLC-based Electric Control Cabinet, Level Gauges, Frequency Converters.
Full Automation: PLC control system ensures precise, continuous operation, minimizing manual intervention and enhancing process consistency.
Dust-Free Operation: Sealed system with an integrated dust collector maintains a clean, safe, and improved working environment.
Convenient Maintenance: Streamlined design allows for easy feeding and discharging, simplifying daily operation and upkeep.
Scalable Design: Available in multiple capacities (10T-100T) to match specific project requirements.
Packing and Delivery
1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
2. The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try their best to save your container quantity.
FAQ:
Q: How Can I Find The Suitable Model?
A: Please Provide Flow Rate, Solids Content And Sludge Type, or directly contact us by the clicking the “contact” icon. We Can Assist You In Model Selection.
Q: Where Is Your Factory Located?
A: Yixing City, We are in the famous city of environmental protection equipment ,professional for Sludge screw press dewatering Machine ,Which Is Very Close To Shanghai With Only Less Than 3 Hours' Driving. Welcome for your visiting.
Q: Do You Provide OEM Service?
A: Yes. We Can Do The Customized Design According To Your Different Request for sludge Dewatering.
Q: How About The Production Capacity Of Your Company?
A: Our Factory Covers Area Over 15,000m² And Produces Machines 2000 Sets Per Year.
Q: How Could We Trust You And Your Company? Is This Your First Time Transaction?
A: A: Our Company Has More Than 20 Years Professional Experience. We Cooperate Over 800 Customers in China And Overseas. We Export Nearly 60 Countries All Over The World. And We Have More Than 60+Patents, CE,ISO 9001,SGS Certificates.
Q: Do You Offer After-Sales Service?
A: Video Technical Support, Online Support,Spare Parts, Field Maintenance Repair Service
